Poco

poco waving icon.png

Smart Glasses that Treat Lazy Eye in Kids

Poco is a pair of smart glasses that help treat Amblyopia (lazy eye) in children age 4-8. They work by dimming one lens to force the brain to use the weaker eye. There is an app that the parents can use to track usage and schedule treatment times. The app also allows the child to play games that strengthen the eye.

Duration

16 weeks

Year

2019

Category

Wearables

Papa poco.png

How do you treat it?

Eye patch

poco boy with patch illustration.png

Used on strong eye 2-6 hours a day to forcefully correct vision of weaker eye

Atropine drops

poco eye dropper.png

Temporarily blinds eye, used if child is not cooperating with patching.

Surgery

poco syringe icon.png

Can permanently solve the issue but has limited success, is invasive and expensive.

The Problem

Design Goal

Empower kids with Amblyopia through a new treatment option using positive reinforcement strategies

What is Amblyopia (Lazy Eye)?

5%

of kids live

with Amblyopia

noun, Ophthamology       /ˌamblēˈōpēə/

Partial or complete loss of vision in one eye caused by conditions that affect the normal development of vision.

The Patient/Child

Kids feel uncomfortable and embarrassed with current treatments. They need a treatment that will empower them.

The Parents

Parents want to make sure their kid is on track to treat this disability while also making sure they are happy.

The Doctor

The doctor would like a better way to track their patients as they usually only see them once every 3 months.

The Secondary Caretaker

The secondary caretaker like a teacher or nanny must be able to aide the child follow treatment in an easy way.

Stakeholders

Solution

Meet Poco

An Empathetic Alternative to Patching

poco kid with phone 2.png

"These glasses hide my disability and allow me to be a normal kid while helping to fix my eye"

A Discreet and Innovative Solution

Unlike patching, these glasses blend in and do not embarrass the child. This is just one of many ways to empower the child and make them feel more comfortable with the treatment and more willing to cooperate with it.

Make Treatment Fun and Effective

Children can play videos games to train their eye! Research shows that playing video games which require a lot of concentration and focus make the eye work harder than daily use of the eyes.

Adaptable to Each Unique Case

The Poco glasses and app treatment is customizable to each individual case. Unlike patching which is a one size fits all solution. Every case is unique and requires an adaptive solution to make the treatment more effective.

Poco Glasses


Low Power Electrochromic Display

Much less noticeable than patches, these glasses will fit right in!

Long Lasting Battery

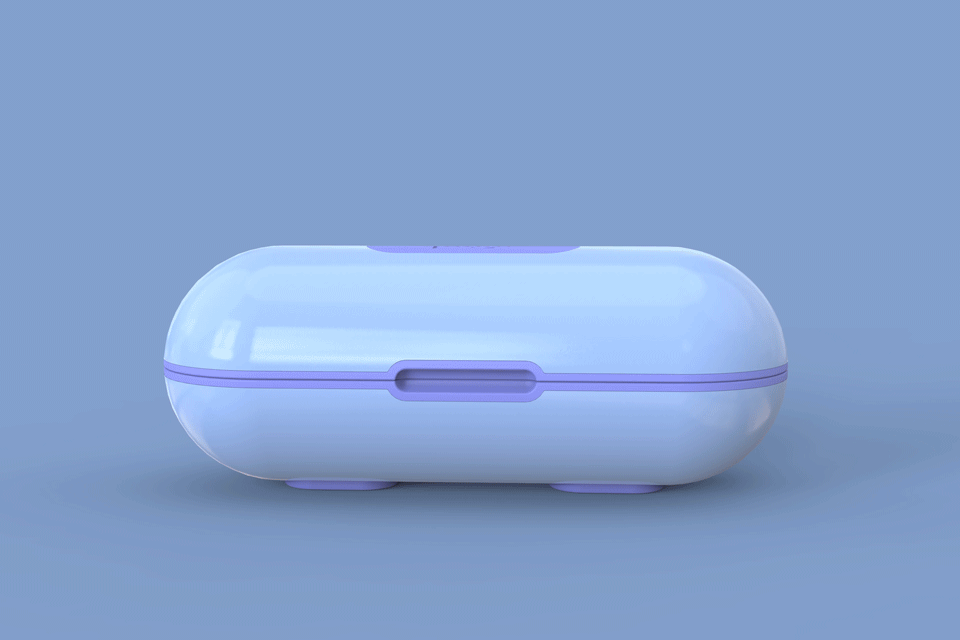

100ma battery will last up to 2 days and conveniently charges in the case.


Safety in Mind

Much less noticeable than patches, these glasses will fit right in!

Designed to Take

a Tumble

Much less noticeable than patches, these glasses will fit right in!


Electrochromic display

100ma Lipo Battry

PCB with BLE

Display cord

36 Gauge power wires

Poco App

Empower Kids through Storytelling

Help Poco the Parrot fly up the tree to his nest by completing challenges and games while using the glasses!

Gameify Amblyopia Treatment

Games like Tetris and Pong require a lot of focus and eye tracking which trains the eye much more than daily viewing.

Gain Points and get Rewarded

To encourage kids to use the glasses more, points and rewards are given when games are played and challenges are completed.

Compete with your Friends

Poco creates a community of kids with Amblyopia. They can compete with each other through points and games.

poco app presentation 4.jpg

Poco App for Parents

The Poco app can also be used by parents through a separate password protected login. Parents will be able to monitor the glasses and see how their child is using them. They will also be able to reach out to their doctor and other parents in the community.

Internals

Treatment options for children with Amblyopia are limited and ineffective, this leads to severe eye damage if not treated before age 8.

"Patching is an old treatment that needs an update"

- Dr. Mark Salevitz

  Pediatric Opthamologist

  Phoenix Children’s Hospital

00

Problem Statement

process

01

I did extensive research on the subject doing a competitive analysis, examining the stakeholders, interviewing doctors, market opportunity analysis and user journey mapping.

Research

Key Insights

noun_Love black.png

Hard to track progression of treatment

noun_Eye patch black.png

Treatment is not reliable

noun_wrong black.png

Doctors do not get enough info


Kids are embarrassed wear patches

10/15 participants chose patching as their treatment

12/15 participants chose not to patch their kids at school.

86% of participants wish there were more options.

02

I ideated around some general solutions that would solve this problem and chose the one that I saw the most potential in.

IMG_0368 2.PNG
IMG_0374 2.PNG
IMG_0369 2.PNG
IMG_0370 2.PNG
IMG_0373 2.PNG
poco general ideation 1.png

VR headset with games to train eye

poco general ideation 4.png

Wearable that blocks signals from eye to brain

poco general ideation 3.png

Wearable device reminder for patching

poco general ideation 2.png

Smart glasses that replicate patching

03

System Configurations

I thought through all possible configurations for the electronics while considering ergonomic factor like weight distribution and size.

putting the battery and PCB in the back was more discreet and distributed the weight better

General Ideation

Inspiration

04

Round One

General Outline

Round Two

Lens Size

Frames

poco frames 1.png
poco frames 3.png
poco frames 2.png
poco frames 4.png
poco frames 5.png
poco frames 6.png

too pointy

too round

balanced

medium

wide

circular

I designed the frames by creating outlines and printing them on a laser cutter to see how they looked in real life.

05

cut around 60 frames in total

Round Three

Bridge and Arm Detail

poco frames 7.png

smooth bridge

poco frames 8.png

wide arms

poco frames 9.png

detailed bridge

Round Four

Hinge Connection

poco frames 12.png

through joint

poco frames 11.png

side joint

poco frames 10.png

hole joint

Hinges

06

I designed the hinges by modeling them and printing them using an elastic resin so that I could test the flexibility

poor bend, awkward aesthetic when bent

Test #1

Screen Shot 2019-11-26 at 20.22.20.png

Test #2

better aesthetic, still hard to bend

good directional bend, aesthetic is too industrial

Test #3

Test #4

Screen Shot 2019-11-26 at 20.22.11.png

decent bend movement, weird aesthetic

Test #5

playful aesthetic but too bendy and thin

Test #6

playful aesthetic, good bend, but nowhere for wire to pass

Test #7

Screen Shot 2019-11-26 at 20.22.16.png

rounder edges, directional bend, hole for wire to pass

Final

Screen Shot 2019-11-26 at 20.31.18.png

optimized for frame and bend strength

07

Arms

The arms were designed using a combination of sketching and blue foam modeling to test details like button placement.

most comfortable button placement as it doesn't require you to push against the head

this arm design makes the back look thinner by using a darker shade of color

08

Feedback and Testing

James, age 5

Emily, age 8


10

Details

09

Branding

Poco means little in Spanish and also relates to the product while being very easy to pronounce for kids. The logo resembles a smiling face.

Appearance Model

10

I experimented with many different techniques to make realistic flexible hinges and materials for the appearance model.
